Lucas SFB105 Flasher Unit

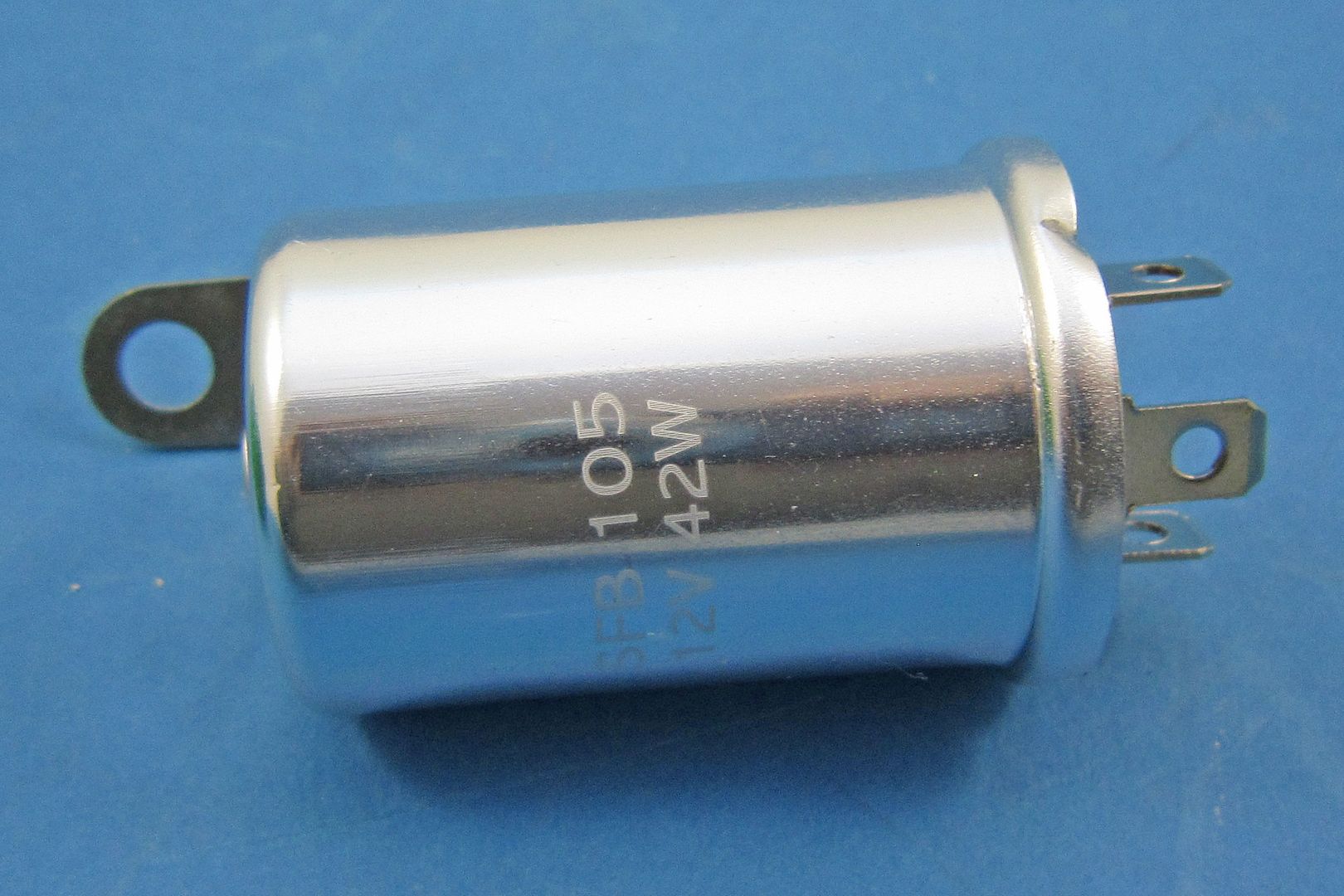

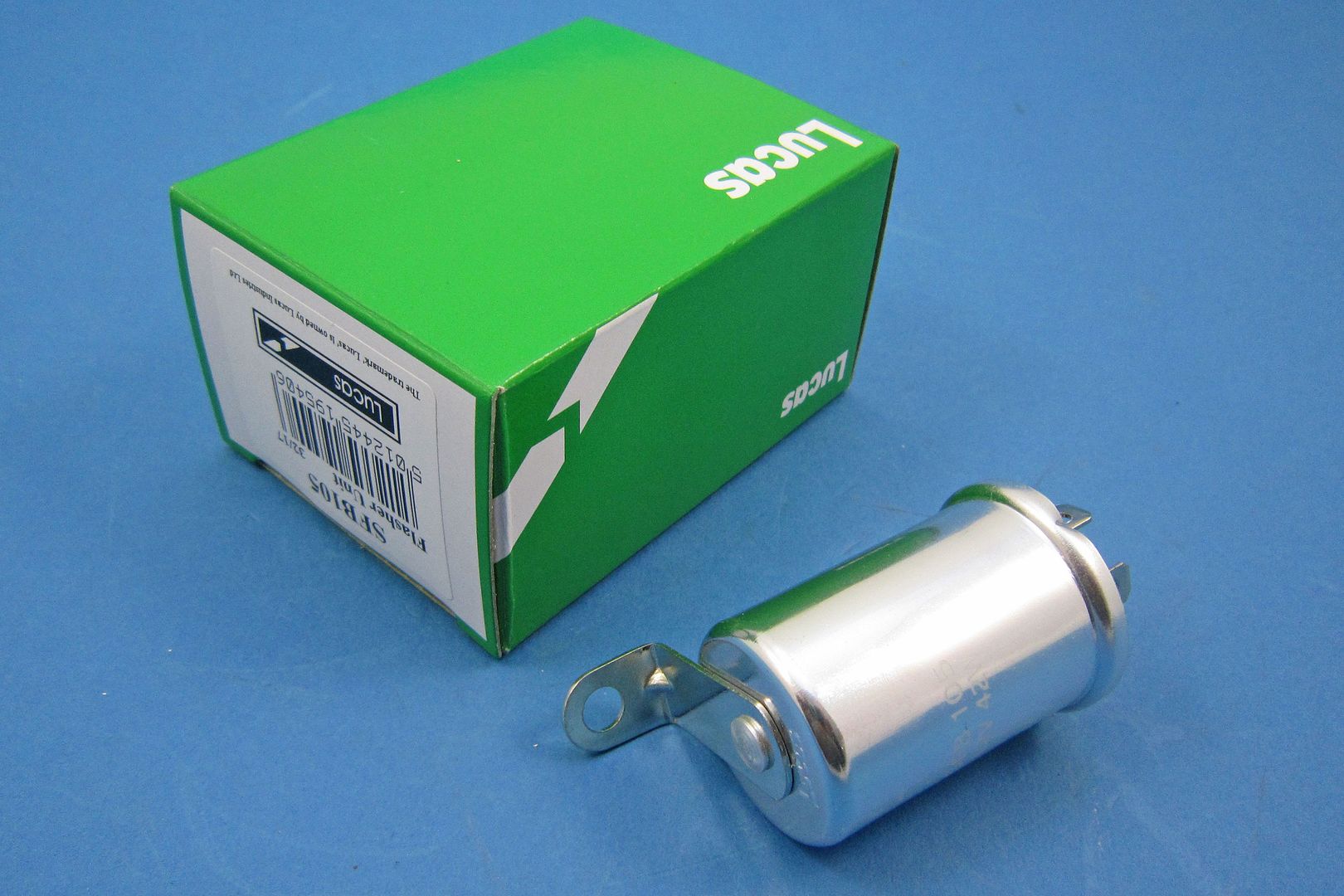

Lucas SFB105 flasher unit. 12V, 42W capacity.

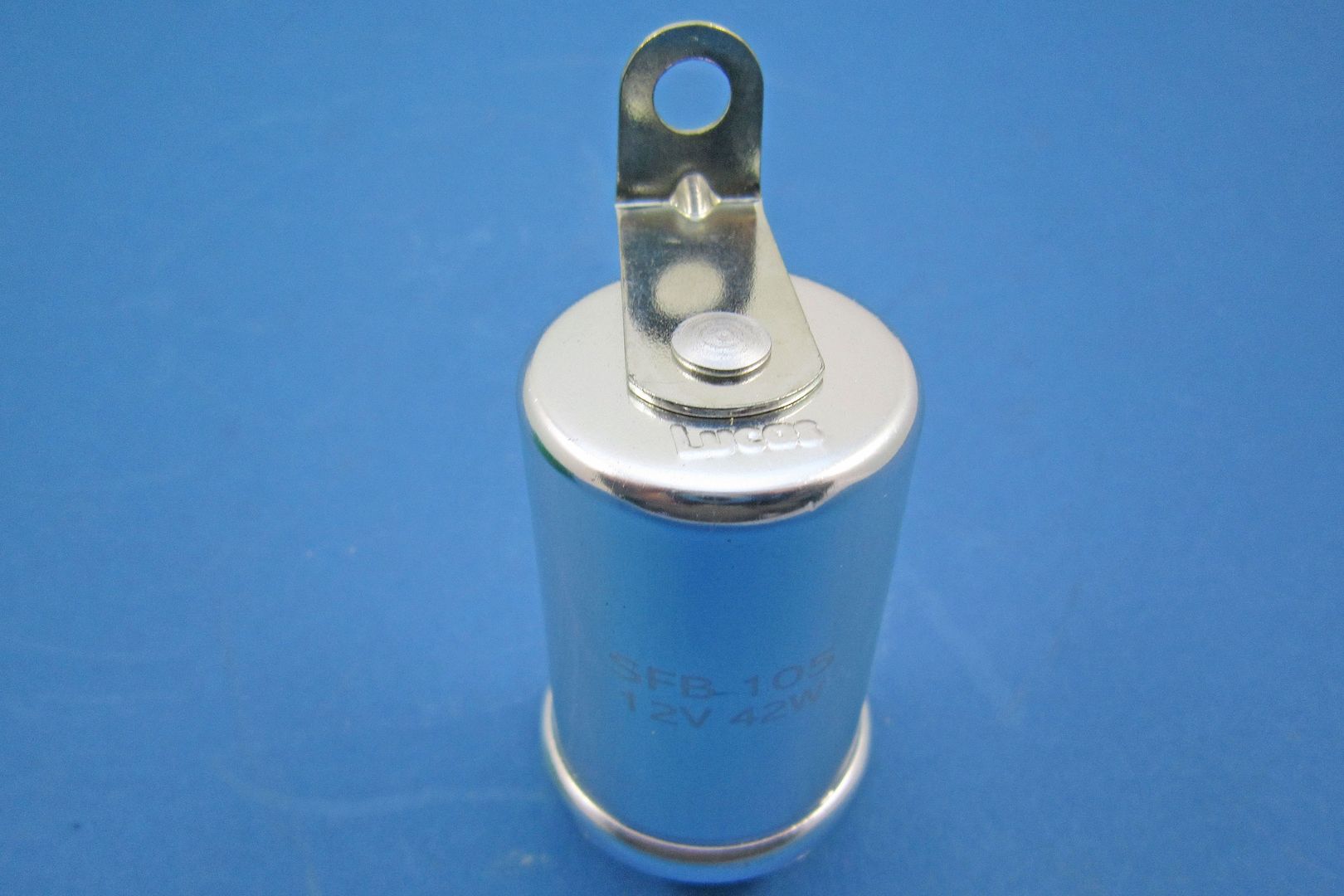

Aluminium can with integral mounting bracket. 3 x 6.3mm blade terminals, marked B, P & L. Can be used for both positive and negative earth vehicles.

Replaces Lucas FL5

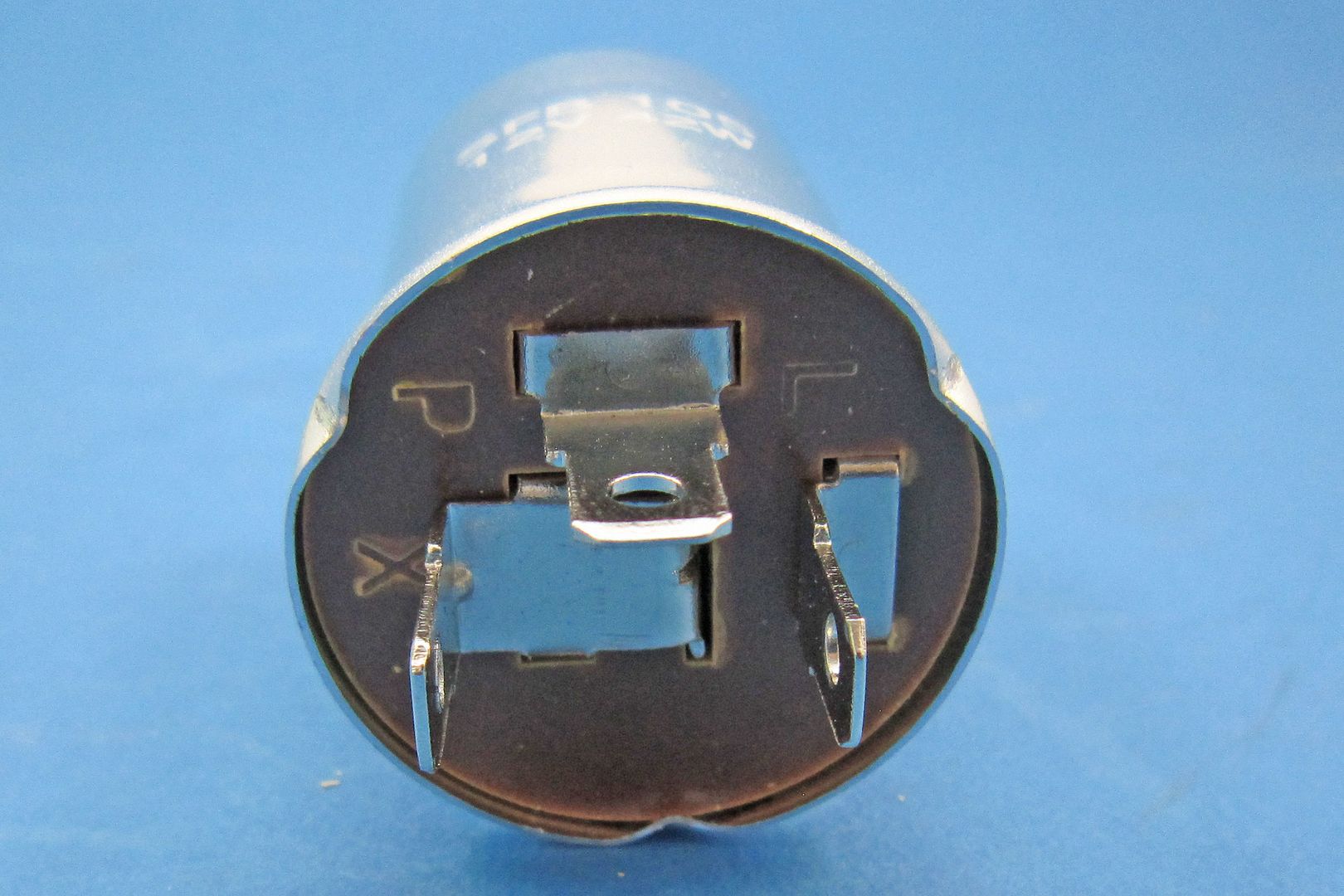

B (or X)  = Power in, P = feed to warning lamp, L = Flasher signal out

A replica version (better quality than the Lucas one!!) is also available.
